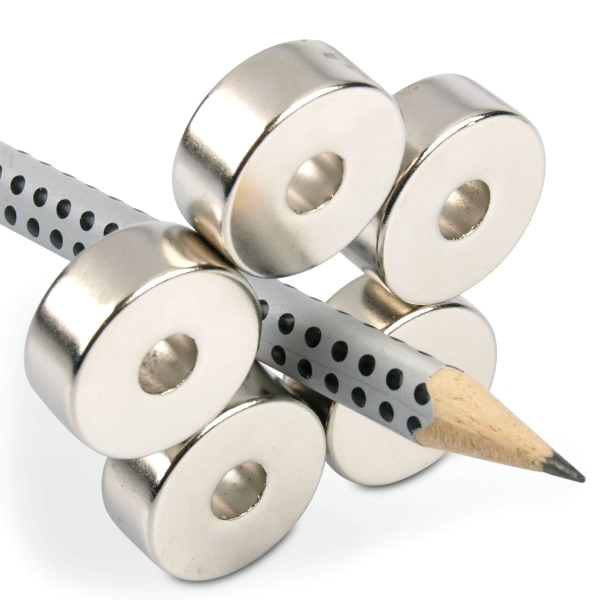

Neodymium Ring Magnet Ø20x8x6mm Hole Pull Force 2.5kg

Name: Μαγνήτης Ροδέλα Φ20x8x6mm Οπή Διαμετρική Νεοδυμίου Δύναμη Έλξης 2,5kg
SKU: 05-033
Availability: InStock

2,79€

In stock

Request a Quote for Larger Quantities

Add to compare

Add to wishlist

SKU: 05-033 Category: Ring Magnets

Περιγραφή

Strong neodymium ring magnet. Ring magnets usually have the North (N) and South (S) poles on their flat circular surfaces and feature axial magnetization. Diametrically magnetized ones are identified by the corresponding mark.

Technical Data

Weight	0,0017000 kg
Material	Neodymium
Shape	Ring
Height	8mm
Internal Diameter	6mm
27mm	20mm
Tolerance ±	0.1mm
Magnetization Direction	Διαμετρική/Diametrical
Magnet Coating	Nickel-plated (NiCuNi)
Magnetization Grade	N35
Pull Force	2.5kg
Shear Force	0.5kg
Max. Temperature	80°C
